Rotary Shear Fly Cut To Length Line With Edge Trimming Stainless Steel 0.3 - 3 X 1650

Name: Rotary Shear Fly Cut To Length Line With Edge Trimming Stainless Steel 03 3 X 1650
Brand: Jinye
Price: 1 USD

Wholesale Rotary Shear Fly Cut To Length Line With Edge Trimming Stainless Steel 0.3 - 3 X 1650 from china suppliers

Brand Name : Jinye

Model Number : Fly (0.3-3) x 1650 plus edge trimming

Place of Origin : Wuxi, China

MOQ : 1Set

Payment Terms : T/T, L/C

Delivery Time : 120-180days

Packaging Details : 40HC x 6

Name : Rotary Shear Fly Cut To Length Line With Edge Trimming

Sheet material : Stainless steel 304,, 316, mirror stainless steel

Sheet thickness : 0.3-3mm

Sheet width : 500-1650mm

Coil ID : 508mm, 610MM

Coil OD : 2000mm

Coil weight : 20T

Cutting speed : 180pcs per minute

Cutting length : 200-3000 -6000mm

Cutting style : Rotary shear

Leveler : 6 Hi high precision

Total power : 480KW

Land area : 35m x 10m

Feeding direction : Customer decides

Contact Now

Rotary Shear Fly Cut To Length Line With Edge Trimming Stainless Steel 0.3 - 3 X 1650

The stainless steel sheet rotary shear cut to length line has edge trimming function, here focus on describing the edge trimmer, leaving other parts to introduce in other relative products.

One pit loop before and one pit loop after edge trimmer, to guarantee edge trimming well and synchronizing with other parts of the line.
One central guide to guide steel sheet into edge trimmer on centerline
Double shafts disc slitter: composed of fixed stand, movable stand, double shafts. Movable stand moves on rails of base for knife tooling change. The upper shaft moves up down by AC motor, worm gear and rod, the knife overlap between upper knives and lower knives are finely adjusted by hand.

Drive is DC/AC motor, speed reducer and hard teeth face gearbox.

Slitting speed	0-80m/min
Shaft diameter	Φ220mm×1700mm
Disc knife	Φ330mm×Φ220mm×10mm
Motor power	AC75Kw
bearings	NSK bearing
Shaft lock	Hydraulic nut lock 2pcs

Edge Scrap winder: Located at two sides of disc slitter, to wind up the edge scraps after edge trimming. Composed of base, frame, winding shaft, winding guide, drive, etc. Drive is AC motor and reducer.

Edge scrap width	2-8mm/each side
Winding speed	0-100m/min
Max winding load	MAX:500Kg
Drive motor	AC4Kw x2sets

Composition:

No.	Composition	Qty
1	Coil preparation saddle	1pair
2	Coil loading car	1set
3	Uncoiler support arm	1set
4	Uncoiler+Coil snubber roller + paper winder	1set
5	Double pinch and 5rolls leveler + Coil head shear	1set
6	Cascade roll loop1	1set
7	side guide	1set
8	edge trimmer	1set
9	scrap winder	1set
10	Cascade roll loop2	1set

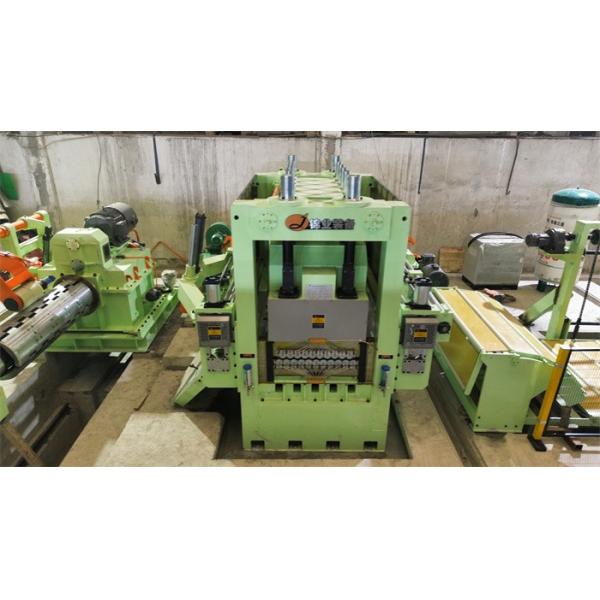

11	6hi leveler+ work rolls cleaner	1set
12	Dual sides film /electrostatic paper laminator	1set
13	Servo feeder	1set
14	Fly shear(rotary shear)	1set

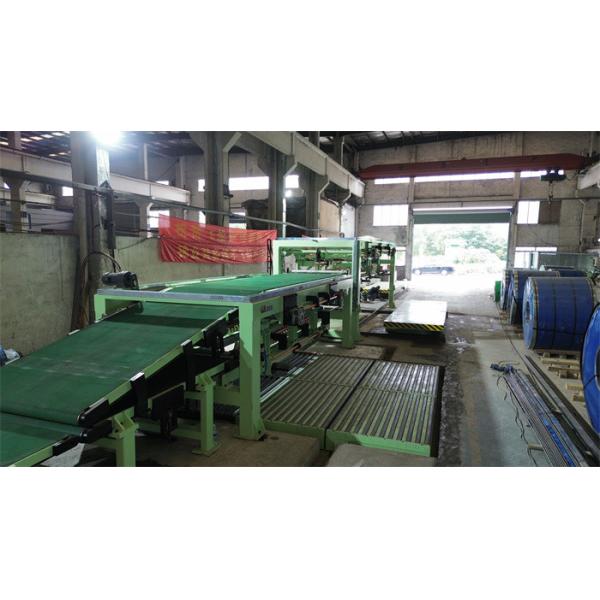

15	convey belt + waste sheet car	1set
16	Inspection table	1set
17	Dual stackers	1set
18	Output roll tables	2sets
19	Hydraulic system	1set
20	Pneumatic system	1set
20	Pneumatic system	1set
21	Electric control system	1set

Machine Parameters:

No.	Item	Parameters
1	Cutting speed	Sheet length(mm) cutting times(pcs/min)
		200mm 180pcs
		500mm 160pcs
		800mm 100pcs
		1500mm 52pcs
		2000mm 40pcs
		3000mm 26pcs
		4000mm 20pcs
		5000mm 17pcs
2	Threading speed	0~15m/min
3	Cutting quantity	2000mm x 2.0mm ≤40pcs/min
4	Power source	380V/50Hz/3Ph
5	Total power	~480Kw
6	Drive motors	Uncoiler:AC37KW
		2+5 preleveler:AC 55KW
		Fine leveler:AC132KW
		Edge trimmer:AC75kw
		Length feeder:AC15KW
		Fly shear:AC132KW
		Hydraulic station:AC11KW
7	control mode	AC frequency control
8	Qty of Operators	Technician 1person, workers 2-3persons
9	Land area	L68m×W11m
